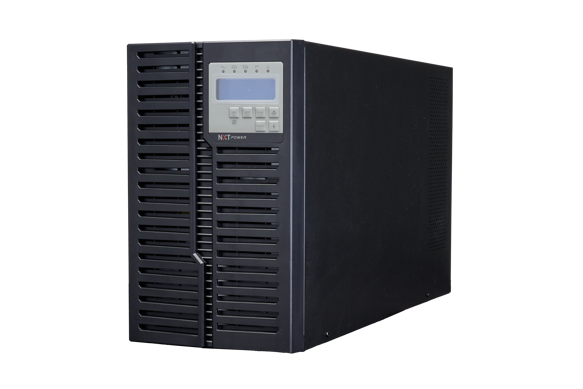

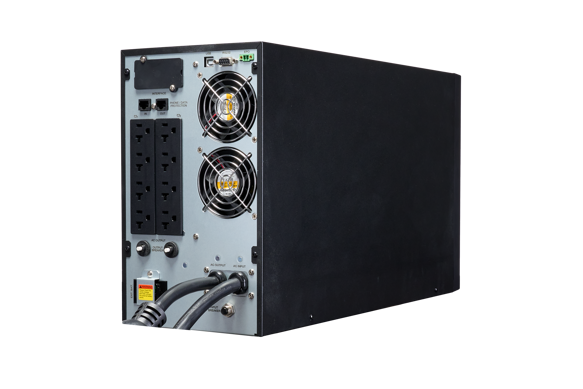

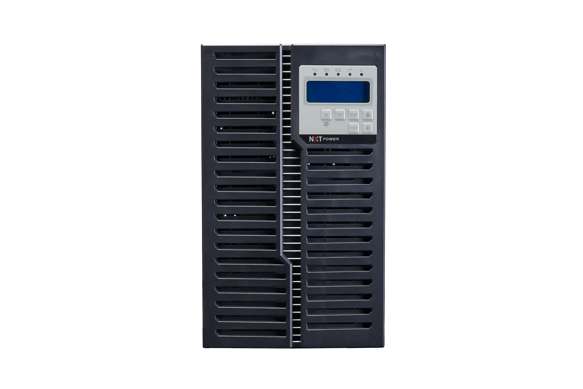

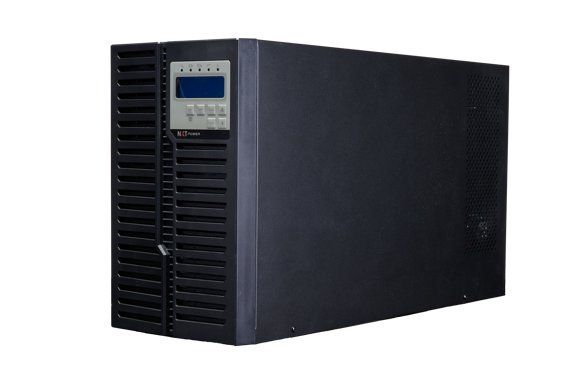

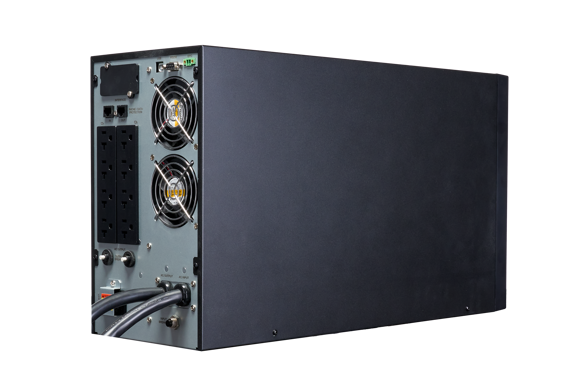

ARES PLUS UPS 1500, 2000 & 3000 VA
For Analytical Instruments & Laboratory Applications
NXT Power's ARES PLUS Series represents a pinnacle in single-phase UPS technology, specifically engineered for environments demanding unwavering power reliability.

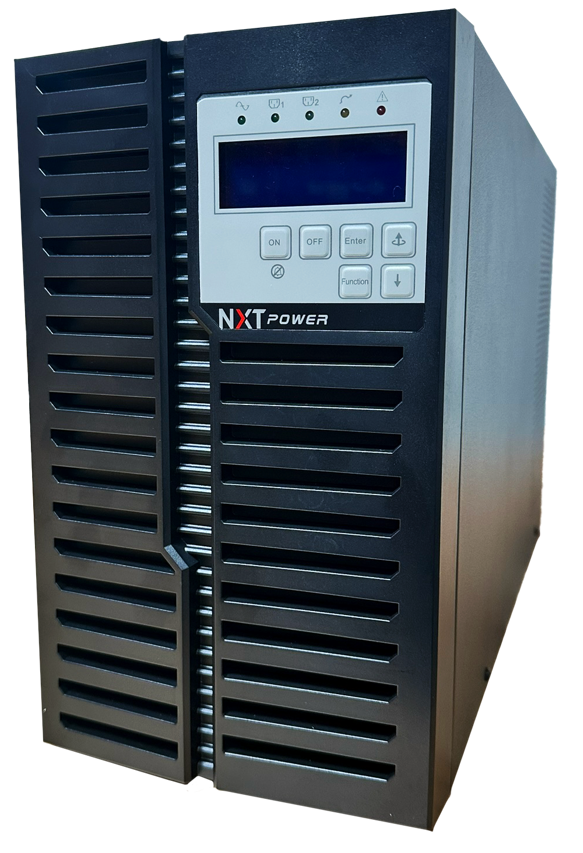

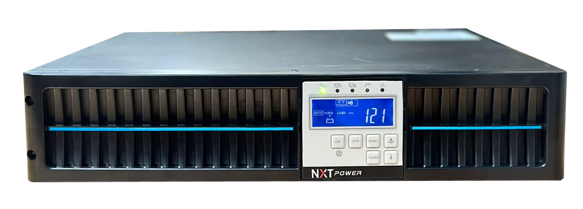

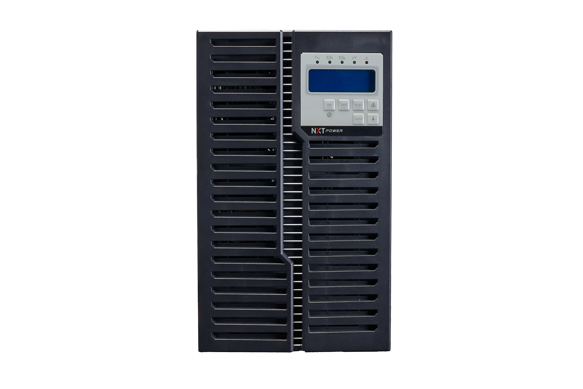

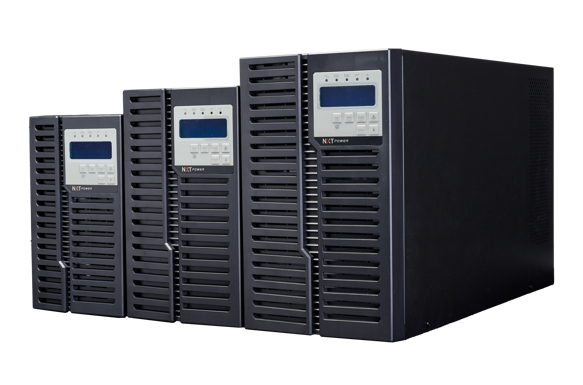

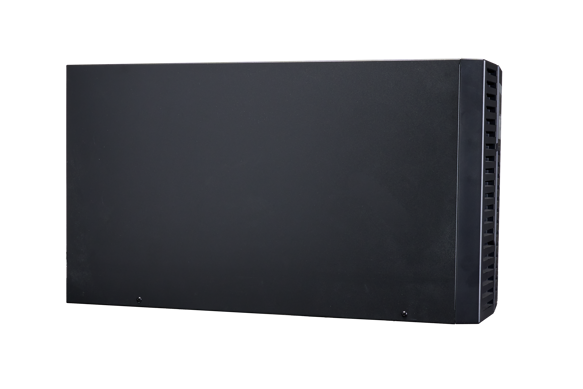

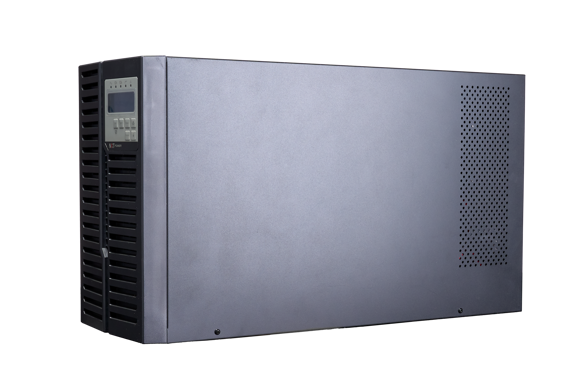

Available in both Benchtop and Rack/Tower Design from 1500VA to 3000VA.
ARES PLUS UPS 1500, 2000 & 3000 VA North American Specs
Model # | Input Voltage AC~ | Output Voltage AC~ | Maximum Load Rating (AMPS) | Maximum Power (VA) | Frequency (HZ) | Case Size (IN) | Ship Weight (LBS) |
---|---|---|---|---|---|---|---|
ARES PLUS 1500VA Benchtop | 120 | 120 | 12.5 | 1500 | 50/60 | 6.1 x 10.2 x 15.9 | 15 |
ARES PLUS 1500VA RT | 120 | 120 | 12.5 | 1500 | 50/60 | 17.3 x 3.5 x 15.9 | 32 |
ARES PLUS 2000VA Benchtop | 120 | 120 | 16.6 | 2000 | 50/60 | 6.7 x 11.3 x 17.4 | 47.4 |
ARES PLUS 3000VA Benchtop | 120 | 120 | 25 | 3000 | 50/60 | 7.6 x 12.6 x 21.8 | 67.2 |
ARES PLUS 3000VA R/T | 120 | 120 | 25 | 3000 | 50/60 | 17. x 3.5 x 23.6 | 59.5 |
ARES PLUS UPS 1500, 2000 & 3000 VA International Specs
Model # | Input Voltage AC~ | Output Voltage AC~ | Maximum Load Rating (AMPS) | Maximum Power (VA) | Frequency (HZ) | Case Size (CM) | Ship Weight (KG) |
---|---|---|---|---|---|---|---|
ARES PLUS 3000VA Benchtop | 230 | 230 | 13 | 3000 | 50/60 | 19x32x45 | 29.8 |
ARES PLUS 3000VA RT | 230 | 230 | 13 | 3000 | 50/60 | 43x8.89x59.94 | 24.6 |
Uninterrupted Power for Critical Applications
NXT Power's ARES PLUS Series is a premium online double-conversion UPS specifically engineered for healthcare and research environments. Designed to shield critical equipment from power fluctuations, it ensures uninterrupted operations, accurate diagnostics, and data integrity.
Core Features
- True Sine Wave Output: Delivering electricity that mirrors the pure, smooth waveform of commercial power, the ARES PLUS ensures optimal performance and longevity for sensitive equipment.
- Seamless Power Protection: The double conversion topology guarantees uninterrupted power supply by isolating connected devices from power fluctuations, surges, and outages. This is crucial for preventing data loss, equipment damage, and operational downtime.
- High Efficiency and Eco-Friendliness: Advanced battery management and high-efficiency modes contribute to reduced energy consumption and a smaller environmental footprint.
- Application Focus: Clinical, Analytical, and Laboratory Environments
Product Benefits
- True On-line Double Conversion Topology
- Available in both Benchtop and Rack/Tower Design
- Available in both 120v and 230v (3kva only)
- SNMP Compatible
- Advanced DSP Control Technology
- 9 Output Power Factor
- Wide Input Voltage Range
- Active Harmonic Current Control
- LCD/LED Display
- Patent Backup Runtime Estimation
- Multiple Operation Mode
- Easy Firmware Flash Upgrade
- Includes NXT Power 3-year warranty
![Lab Tech](/media/oxdn0j2n/vanguard-application_photo.jpg?width=600&height=600&mode=crop)
Industries & Applications
NXT Power's ARES PLUS Series is a double conversion topology UPS system that are specifically designed for clinical diagnostics, analytical instrumentation, laboratory, and mission-critical applications.
