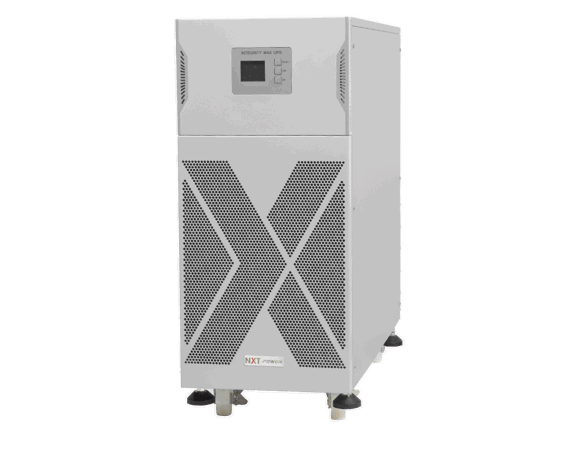

Integrity Max® UPS 2-10 kVA SERIES
Unstoppable Power When You Need It Most.
The Integrity Max® 2-10 kVA UPS Model is built to handle large, complex computer systems in clinical diagnostic settings and prevent oversizing to save customers lost revenue. Ideal for systems with high inrush current and high crest factors requiring 2-10 kVA of power.
Integrity Max® UPS 2-10 kVA SERIES North American Specs
| Model # | Input Voltage AC~ | Output Voltage AC~ | Maximum Load Rating (AMPS) | Maximum Power (VA) | Frequency (HZ) | Case Size (IN) | Ship Weight (LBS) |
|---|---|---|---|---|---|---|---|
| NPTU2200-0 | 200-240 | 120/200/208/ 220/230/240 | 10 | 2200 | 50/60 | 28.4 x 11.8 x 32.8 | 342 |
| NPTU3200-0 | 200-240 | 120/200/208/ 220/230/240 | 14.5 | 3200 | 50/60 | 28.4 x 11.8 x 32.8 | 342 |
| NPTU4200-0 | 200-240 | 120/200/208/ 220/230/240 | 19 | 4200 | 50/60 | 28.4 x 11.8 x 32.8 | 342 |
| NPTU5200-0 | 200-240 | 120/200/208/ 220/230/240 | 23.6 | 5200 | 50/60 | 28.4 x 11.8 x 32.8 | 342 |
| NPTU6000-0 | 200-240 | 120/200/208/ 220/230/240 | 27.2 | 6000 | 50/60 | 28.4 x 11.8 x 32.8 | 342 |
| NPTU8200-0 | 200-240 | 120/200/208/ 220/230/240 | 37.2 | 8200 | 50/60 | 28.4 x 11.8 x 32.8 | 391 |
| NPTU10.0-0 | 200-240 | 120/200/208/ 220/230/240 | 45.4 | 10000 | 50/60 | 28.4 x 11.8 x 29.1 | 391 |
All Systems Go, All the Time

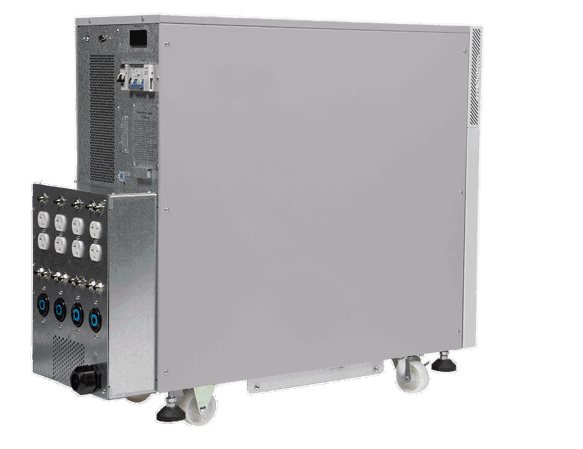

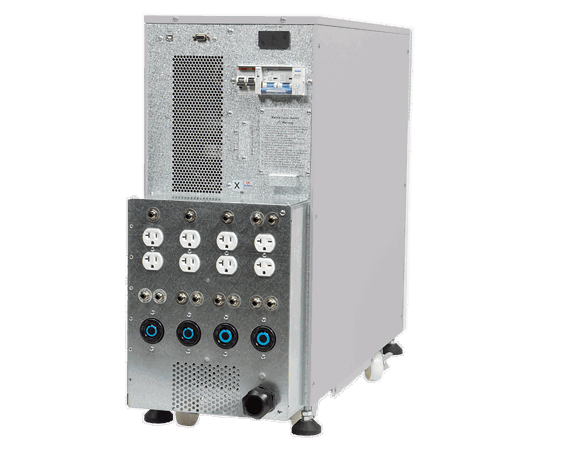

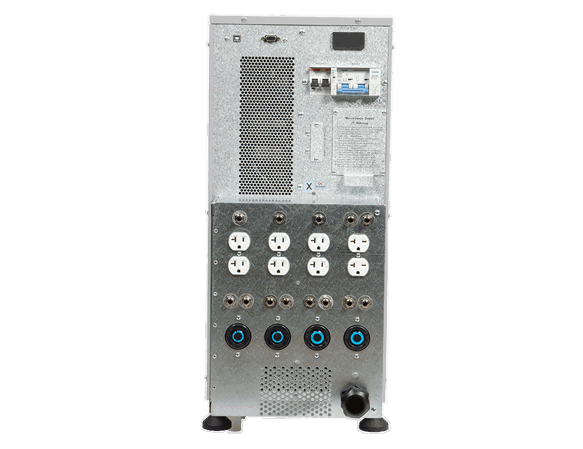

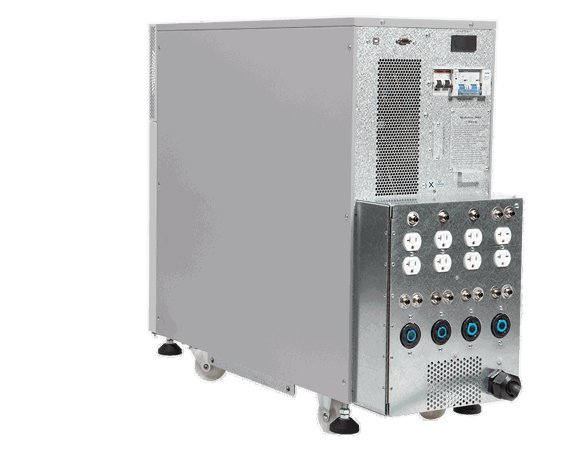

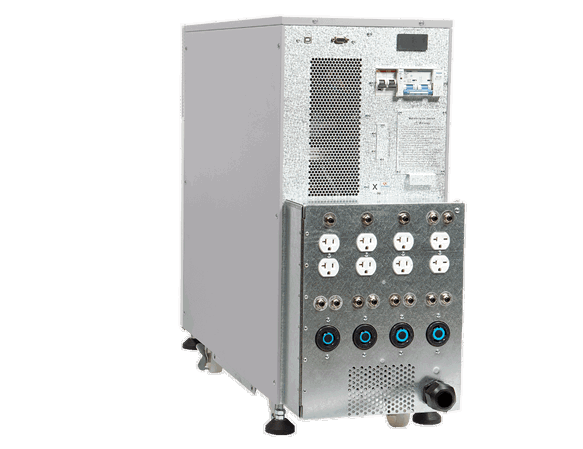

Products in the Integrity Max® series are true online double-conversion UPS systems that provide stable and uninterrupted power for your clinical diagnostic applications. Customize your system's output receptacle panel and input line cord for a faster and simpler onsite setup.

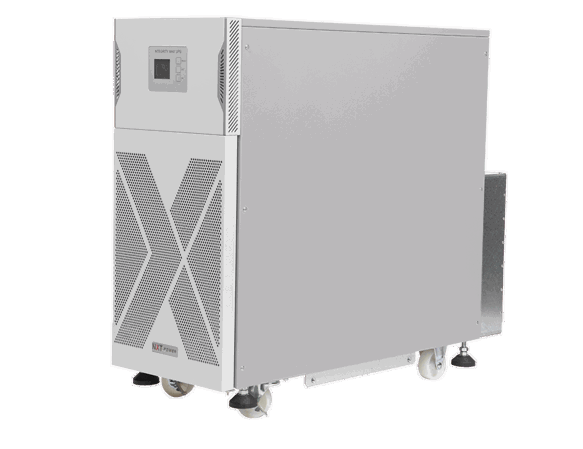

True Ergonomic Space Saving Design: 28.4 in(H) x 11.75 in(W) x 33.0 in(D).
- Internal low-impedance isolation transformer
- Diverse input voltage options and low input THDi
- Limits pass-through voltage to less than 10 volts normal mode, 0.5 volts common mode when tested to ANSI/IEEE C62.41, Category A
- 8ft Line Cord comes standard
- 100% generator compatible
- Built-in maintenance bypass
- UL Listed and CE marked

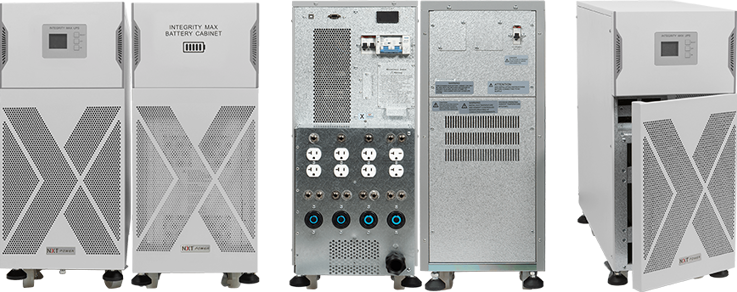

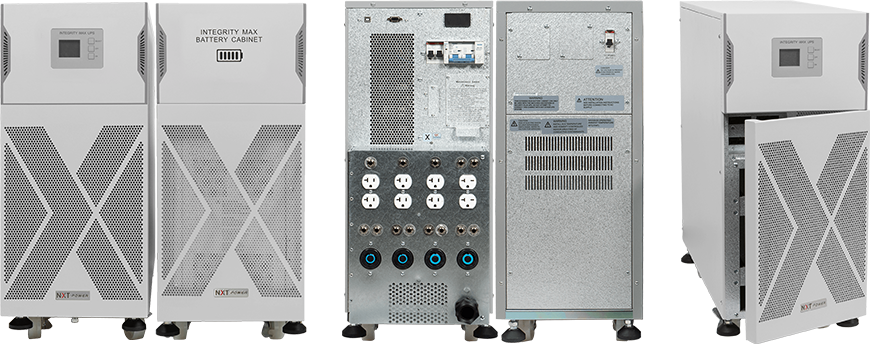

- Battery cabinet sold separately
- OSHPD/HCAi Listed*
- Includes NXT Power 3-year warranty
VIEW THE INTEGRITY MAX® UPS LINE VIDEO
Product Documentation
- Integrity Max® UPS Fact Sheet (PDF)
- Integrity Max® UPS - User Manual (PDF)
- Integrity Max® UPS 2.2-6 kVA Specs (PDF)
- Integrity Max® UPS 8.2-10 kVA Specs (PDF)
- Integrity Max® UPS Quick Start Guide (PDF)
- Integrity Max® Battery Cabinet Manual (PDF)
- Integrity Max® Battery Cabinet Spec (PDF)
- Integrity Max® OSHPD Seismic Cert. (PDF)
- Integrity Max® Seismic Mounting (PDF)
- SNMP Information Sheet (PDF)
- SNMP Card User Manual (PDF)
- Warranty (PDF)
- Quality Policy Certificate (PDF)
- CB Test Certificate (PDF)
- WiseFind SMNP Software Tool
- WiseClose SMNP Software Tool
- WiseInsight SMNP Software Tool
Product Support
Industries & Applications
The Integrity Max® series is most often used in clinical diagnostic settings to support sophisticated computer systems and other electronic equipment requiring clean, stable, and reliable power.
